1986 Buzuluk 660mm dia x 2130mm two roll mill

1986 Buzuluk 660mm dia x 2130mm two roll mill

Contact us for price

Location:Thornton, United Kingdom

orCall +441253850929

Description

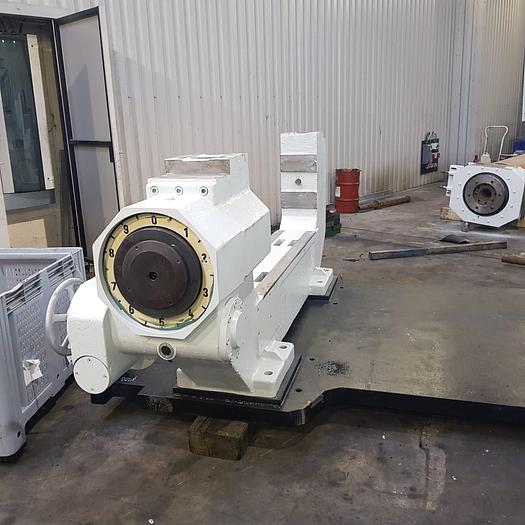

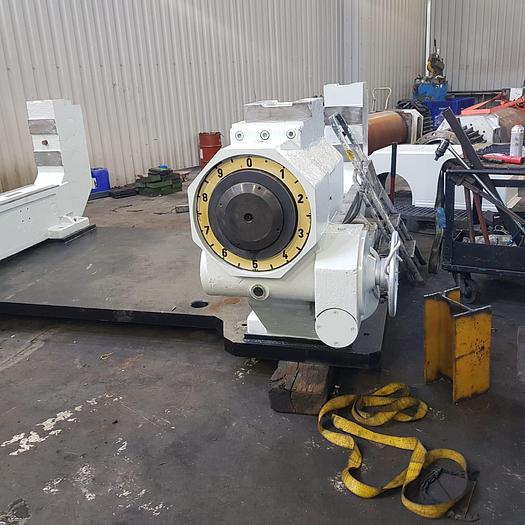

QTY 1 x Buzuluk (Czech Republic) 660mm dia x 2130mm wide two roll mill,

Original year of manufacture: 1986 (Refurbished 2021),

Motorised nip adjustment with facility for manual separation in the event of power failure/emergency,

Peripherally drilled rolls front and rear,

Roller bearings,

Friction ratio 1:1.22

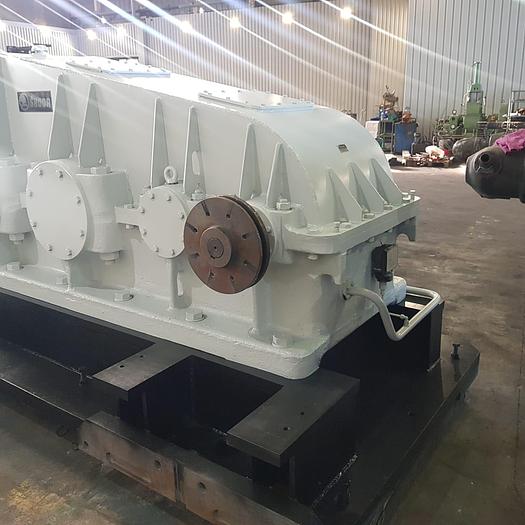

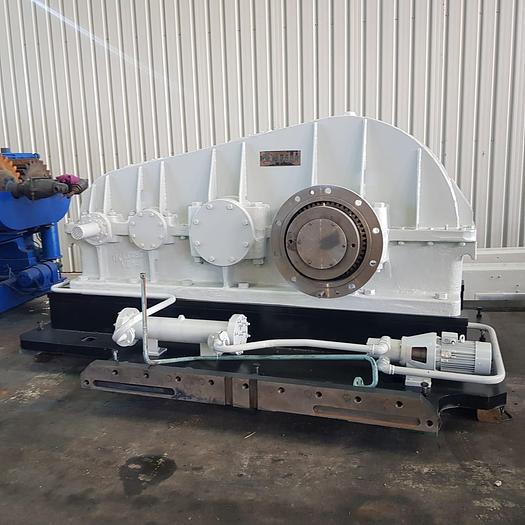

Direct drive gearbox on left hand side (no bullgear type),

with 200kW AC Motor.

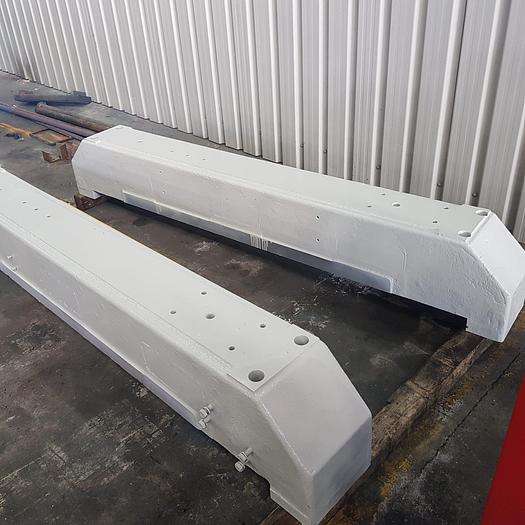

Heavy duty 2 part fabricated steel bedplate.

Overall dimensions (LxW max) 7950mm x 3500mm


To be supplied with the following work carried out:-

Complete disassembly, cleaning/servicing, check all parts, repair/replace where necessary

Strip both rolls down, pressure test and send away for grind/polish

Re-assemble, clean/paint

Supply and fit NEW power fail safe pneumatic disc between motor/gearbox

Supply and fit LVDT to each roll with digital nip position indication via HMI

Fabricate and fit NEW dual acting safety bars to front and rear compliant with CE

Design and build NEW 200kW AC Inverter (VFD) Drive panel for variable speed control

Design and build NEW operator control system with Siemens S7-1200 PLC and HMI (Start/stop, speed control, nip operation, nip position indication, safety circuits, Alarms, brake test monitoring)

New field wiring, fully tested and CE marked with risk assessment and operator guide.


Additional options:

Supply/fit refurbished hydraulically operated stockblender (CE Marked) and integrated with safety/control system

Specifications

ManufacturerBuzuluk
Model660mm dia x 2130mm two roll mill
Year1986
ConditionRefurbished
Stock Number128058942
