Farrel Bridge 11D Banbury internal mixer

Vacuum bale lifter

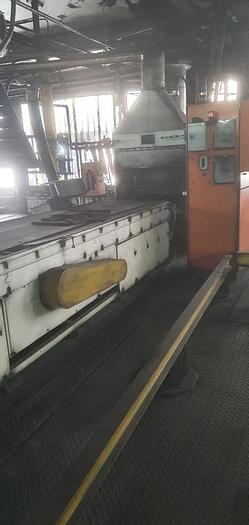

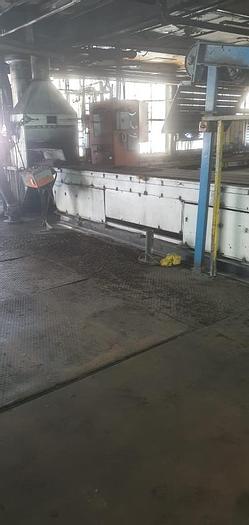

In-feed weigh conveyor (approx 5m long),

Oil weighing station (1 tank),

Fluidised black feed chute to rear of mixer hopper.

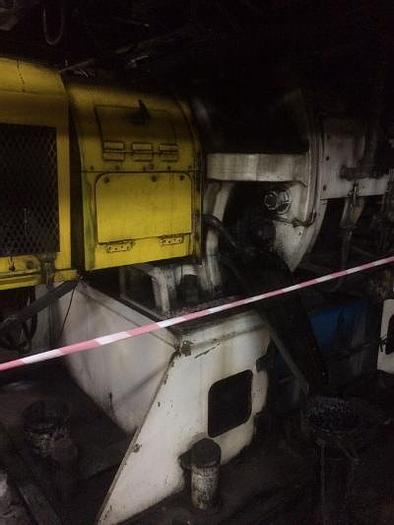

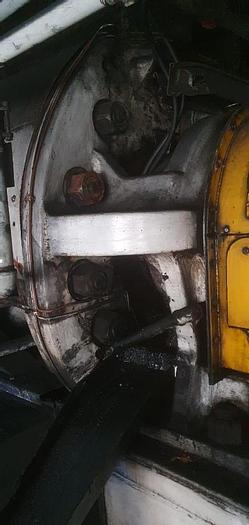

Farrel Bridge model 11D banbury internal mixer (refurbished/upgraded by APV Mitchel, UK and RKM, S.A.),

20in pneumatic hopper with extension neck,

Modified floating weight/throat

Chamber volume: 240L,

Batch weight: approx 200kgs,

Two wing tangential rotors,

S.S.A dust stops,

Hydraulic drop door with linear actuator and spade type latch,

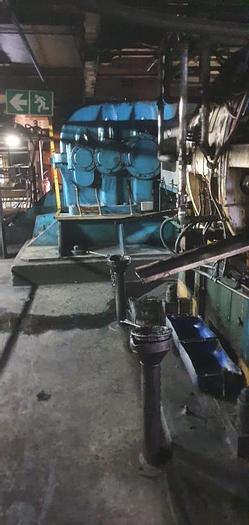

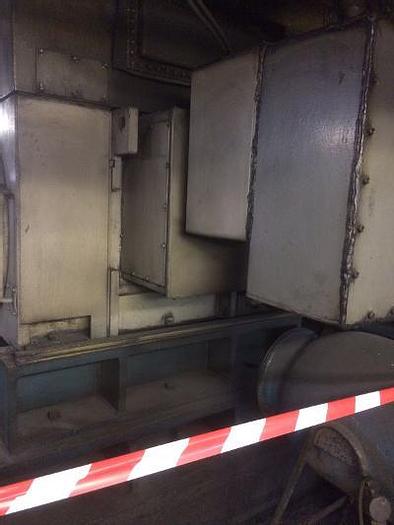

Semi unidrive gearbox,

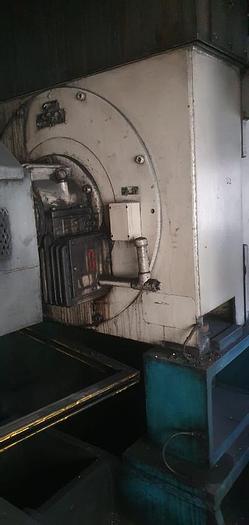

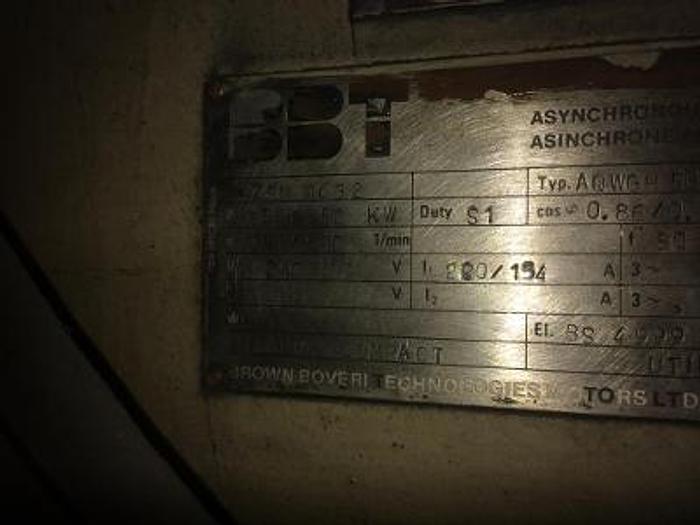

With 2 speed 750kw/390kw 998/590rpm, 2400V motor,

Rotor speed 50/30rpm.

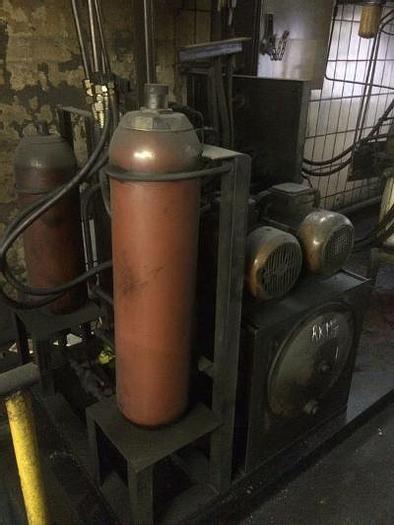

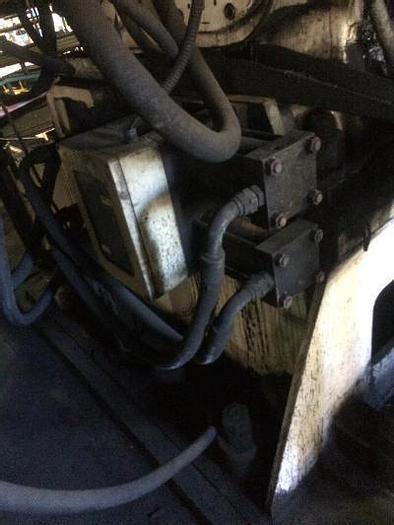

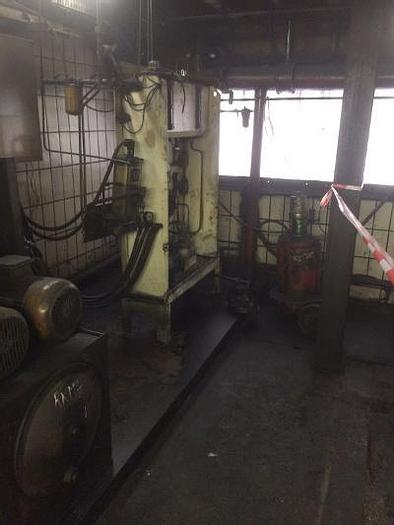

Including hydraulic unit and lubrication system.

In good condition (chamber/hopper used approx 4 years).

The mixer was originally an 11A slide door, but was converted in the 1990's by APV Mitchel, UK to semi unidrive with NEW chamber, NEW hopper, NEW gearbox, NEW fabricated bases for body, gearbox and motor.
