Compact XK - 610 x 1830 Two Roll Mill Compact series

Roll size (working) : 610mm x 1830mm wide.

Material Batch Size : Up to 140kg .

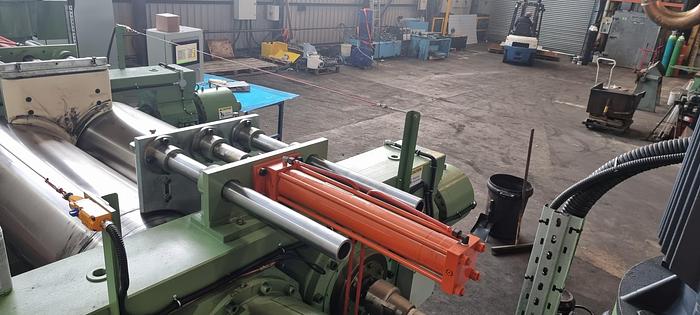

Material Guides : hydraulically adjustable .

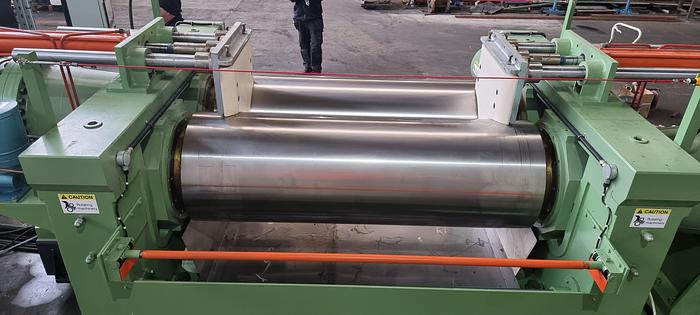

Roll Type : Peripherally drilled with rotary joints fitted for heating/cooling, smooth surface.

Roll Bearings : Roller bearing with oil lubrication.

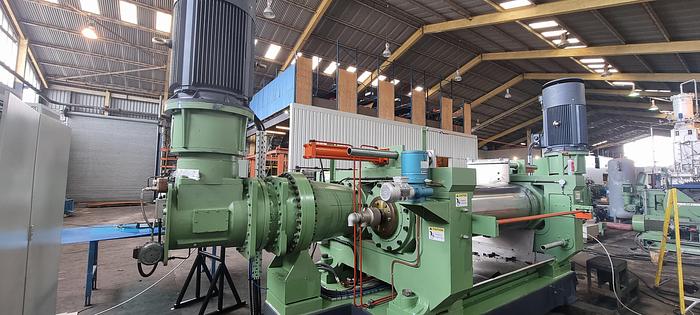

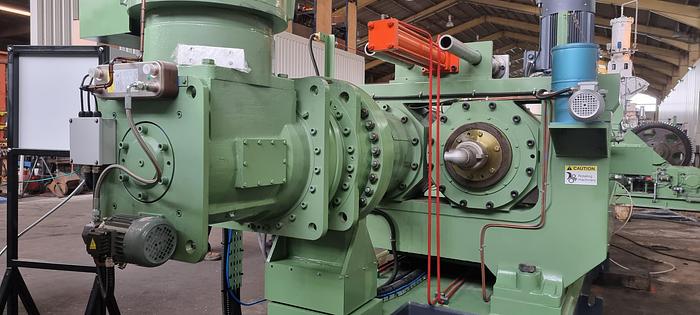

Drive system : Independent drive motor via planetary gearbox directly mounted to each roll.

Motor Power : 110kw, 980rpm, 3ph, 50hz AC variable speed motor (X2).

Linear Roll Speed : 3 - 30rpm

Fraction Ratio between the rolls : Variable

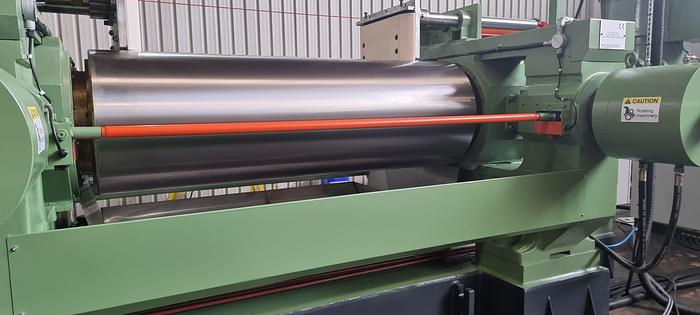

Safety System : Safety push bars, electrical braking to each motor, auto reverse function, automatic roll separation, jog reverse.

Compliant with CE regulations.
