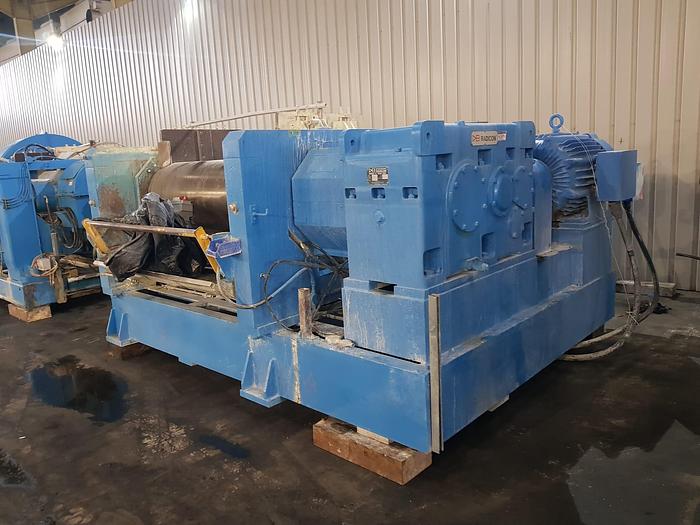

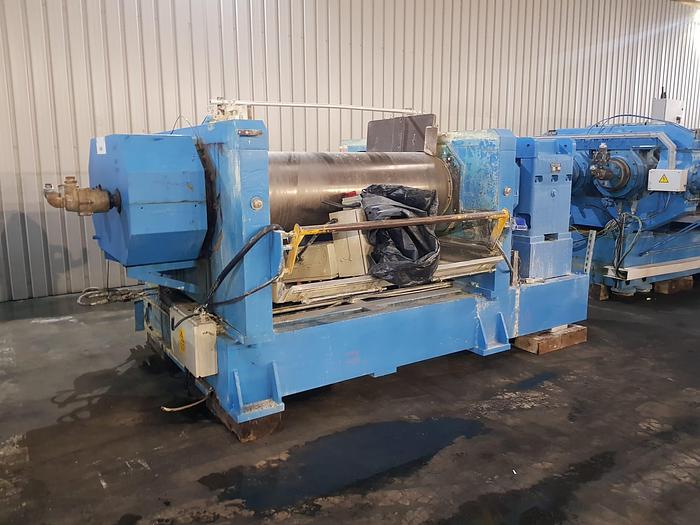

Iddon 1500mm (60in) x 560mm (22in) dia two roll mill

Iddon 1500mm (60in) x 560mm (22in) dia two roll mill
Contact us for price
Thornton, United Kingdom
orCall +441253850929
Description
Year of manufacture 1994,
Hydraulic nip adjustment,
Roller bearings,
Friction ratio 1:1.21,
Safety bars fitted to front and rear,
110kW AC motor and panel.
Direct drive (no bullgear type),
Heavy duty bedplate.
Very good condition.
1 x Barwell Model ECO60R Preformer,Year of manufacture: 2014,
Batch size 60L,
Rear loading type,
Barrel dia 254mm,
Ram pressure 210bar,
Max output 600kg/hour,
With die face cutter.
Good condition (some small score marks in barrel).
Barwell vibracool unit
Corrugated (flat) type,
Year of manufacture 2013,
Inlet height 320mm,
Flight width 205mm,
flight pitch 100mm,
With 2 x 1100W vibration motors,
Vibration speeds 30 to 50Hz.
Excellent condition.
Qty 1 x Pellet handling, weighing and bagging system.
Specifications
Manufacturer | Iddon 1500mm (60in) x 560mm (22in) dia two roll mill |
Condition | Used |
Stock Number | 128058979 |
