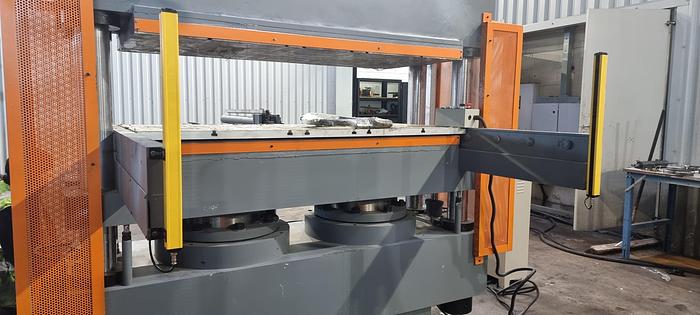

NEW Model XLB-DQ1650*700/3.0MN Rubber Vulcanising Press

NEW Model XLB-DQ1650*700/3.0MN Rubber Vulcanising Press

Contact us for price

Location:England, United Kingdom

orCall +441253850929

Description


• Machine Use: Rubber products, rubber mats

• Power: 380V, 3ph, 50Hz (or as required)

• Total working pressure: 300Ton (3.0MN)

• Working platen size: 1650 x 700 x 65mm

• Working platen area: 2.6Mpa

• Heating Mode: Electric

• Daylight: Single 400mm

• Piston diameter: 2 x 360mm

• Piston stroke: 400mm

• Auxiliary Cylinders: 2 x dual acting fast approach/fast opening cylinders 40mm dia.

• Hydraulic system pressure: 16Mpa

• Press design: 4 column upstroke type 120mm dia

• Press weight: Approx 10,000kg

• Control System: Mitsubishi PLC Control for manual and automatic operation.

• Temperature Control: Solid state relay controlled by PID

• Hydraulic System: Yuken make valves, Siemens pump motor

• Mould ejector system: Hydraulically operated slide out plate

• Safety system: Light curtain guards to front, fixed guards to sides and rear


Specifications

ManufacturerNEW Model XLB-DQ1650*700/3.0MN Rubber Vulcanising Press
ConditionNew
Stock Number128058982
