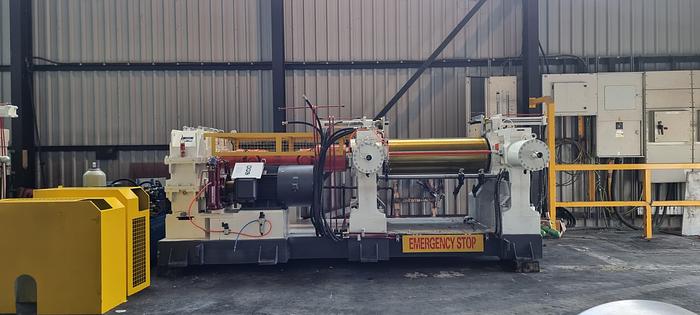

XK-450x1200 Two Roll Mill 450mm Ø x 1200mm wide Two Roll mill

XK-450x1200 Two Roll Mill 450mm Ø x 1200mm wide Two Roll mill

Contact us for price

Location:United Kingdom

orCall +441253850929

Description

Machine Model: XK-450x1200

• CE Marked

• Roll size (working): 450mm Ø x 1200mm wide

• Material batch size: 50kg

• Roll Type: Front roll peripherally drilled; rear roll cored. Both fitted with rotary joints fitted for heating/cooling, smooth surface

• Roll material: Chilled alloy cast iron. Chill depth 10 – 20mm

• Nip Adjustment: Hydraulically operated with digital nip readout via HMI

• Material Guides: Hydraulically adjustable

• Roll Bearings: Roller Bearings with oil lubrication

• Drive system: Unidrive (double output drive shaft type) gear reducer. Independent drive motor to each roll.

• Coupling: Universal type flexible couplings

• Motor Power: 37kW, 980rpm, 3ph, 50Hz AC variable motor (x2)

• Linear Front Roll speed: 21.8m/min (at 50Hz)

• Friction ratio between the rolls: Variable

• Safety system (designed and built in UK): Safety push bars, calliper type braking system to each motor, emergency automatic roll separation, jog reverse. Compliant with CE (EN1417)

• Control system (designed and built in UK): Control system (designed and built in UK): Siemens S7 PLC and HMI.

Specifications

ManufacturerXK-450x1200 Two Roll Mill 450mm Ø x 1200mm wide
ModelTwo Roll mill
ConditionUsed
Stock Number128058989
