2009 HF (Werner & Pfleiderer) GK320E

2009 HF (Werner & Pfleiderer) GK320E

Contact us for price

Location:United Kingdom

orCall +441253850929

Description

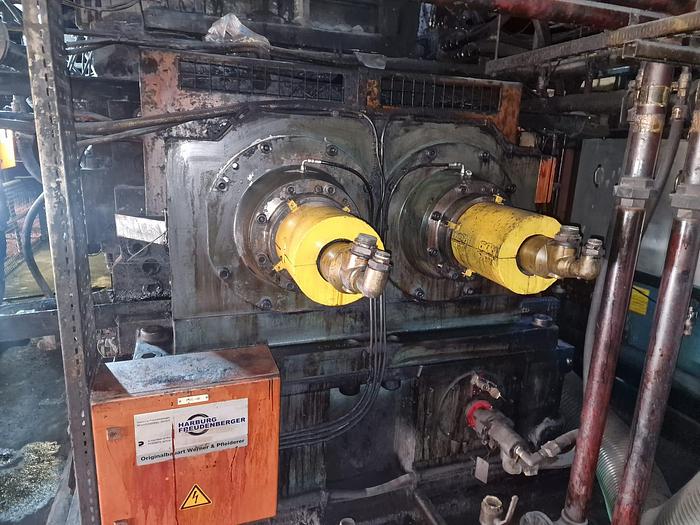

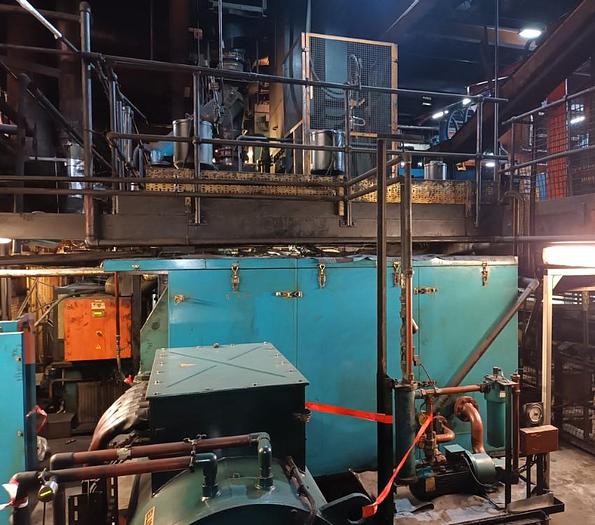

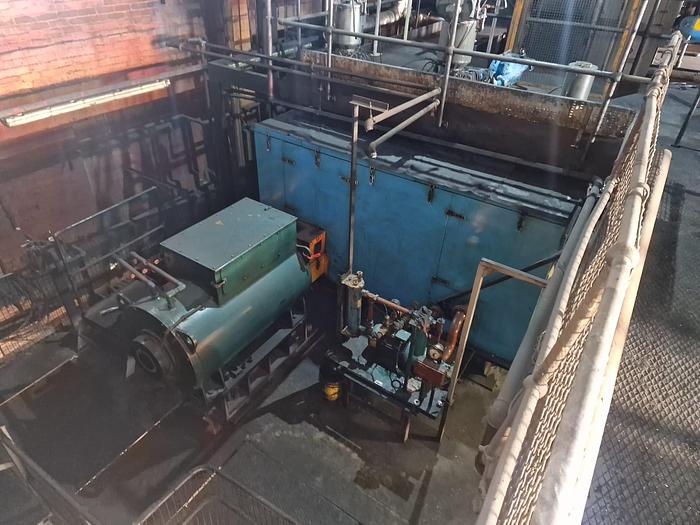

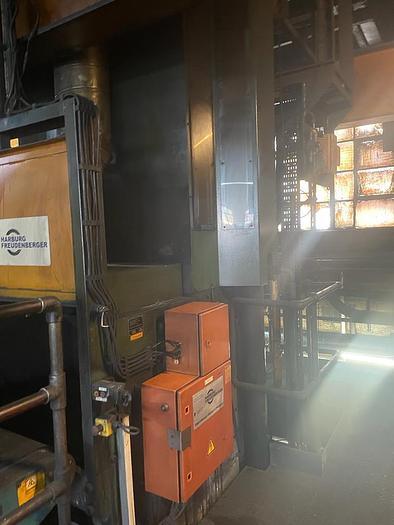

Qty 1 x HF model GK320E intermeshing mixer,

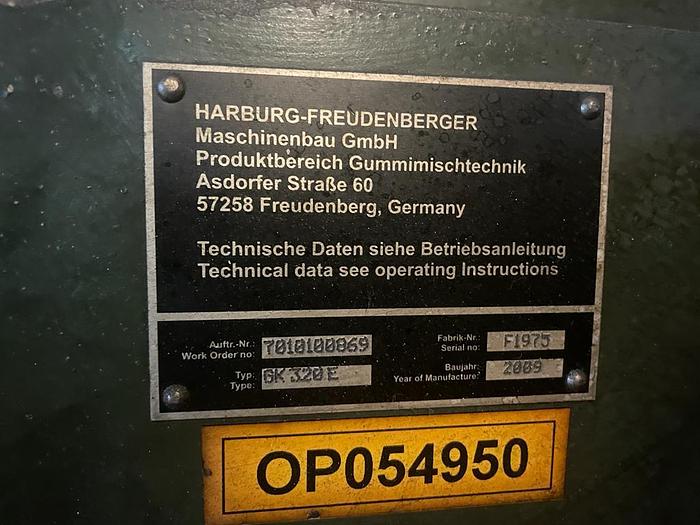

Serial no. F1975,

Year of manufacture 2009 (complete mixer installed new),

Chamber volume: 327L,

Useful volume at 70% FF: 228.9L,

Batch weight at SG 1.2: approx 274.7kg,

PES#5 type rotors,

Special wear protection for Silica mixers,

G.A. type dust seal arrangement,

Oil injection nozzle,

Lincoln lubrication unit,

Hydraulic drop door with linear actuator and spade latch,

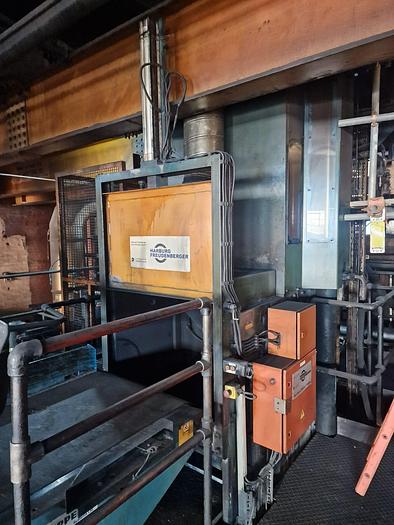

Hydraulic feed hopper (silica design),

Ram cleaning device,

Unidrive gearbox with FLS (forced lubrication system),

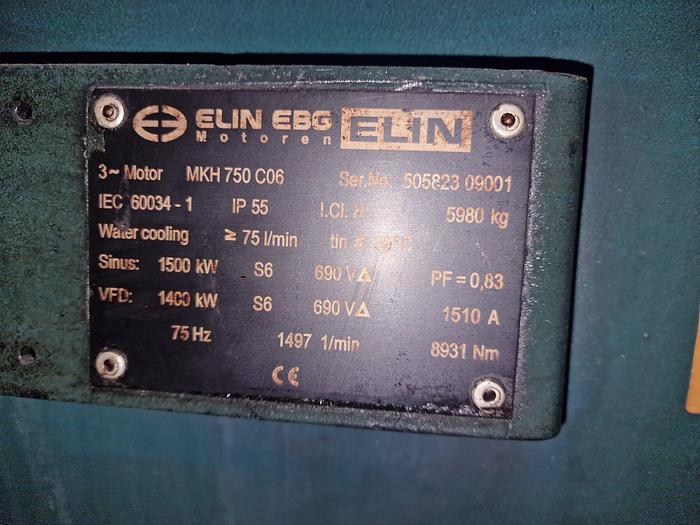

ELIN 1400kW, 4 pole, water cooled, 690V, 1510Amp AC variable speed motor,

ABB Inverter/VFD,

Rotor speeds 10 - 50rpm,

HF control system with and touch screen interface (PKS-JBA Central Data Administration).


3 zone TCU.

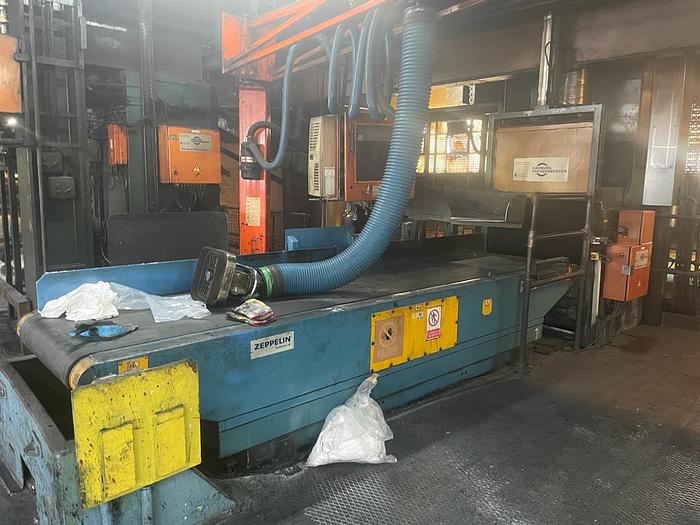

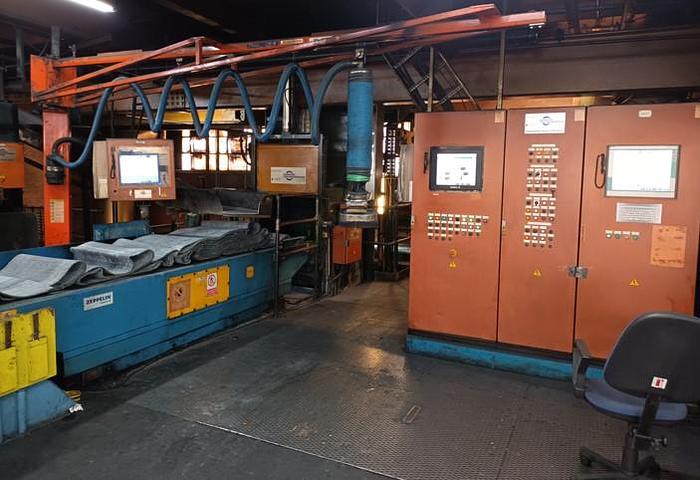

Zeppelin band scale/conveyor and vacuum bale lifter also available (if required)

Specifications

ManufacturerHF (Werner & Pfleiderer)
ModelGK320E
Year2009
ConditionUsed
Stock Number128059002
