2020 Bainite BMIM95

2020 Bainite BMIM95

Contact us for price

Location:United Kingdom

orCall +441253850929

Description

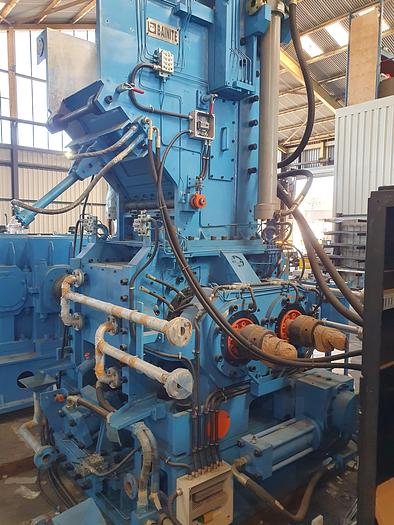

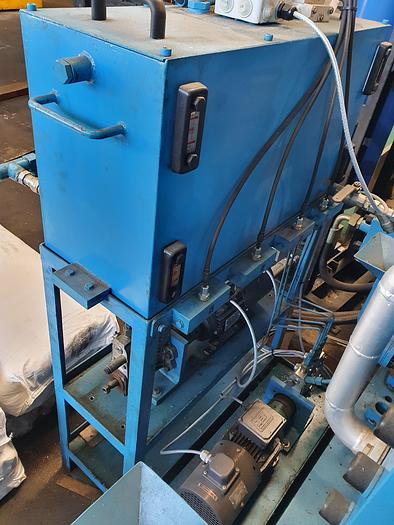

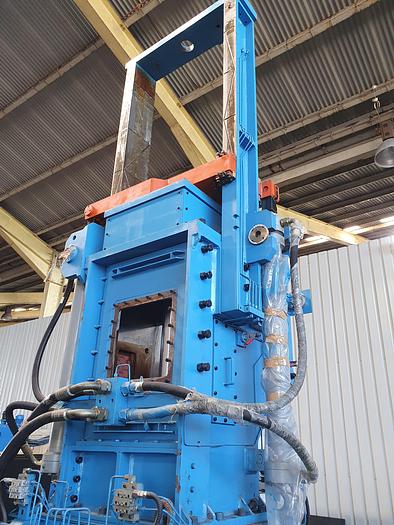

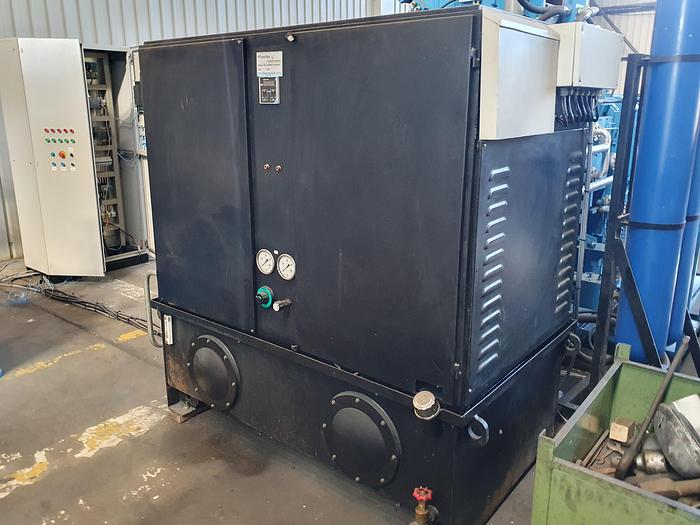

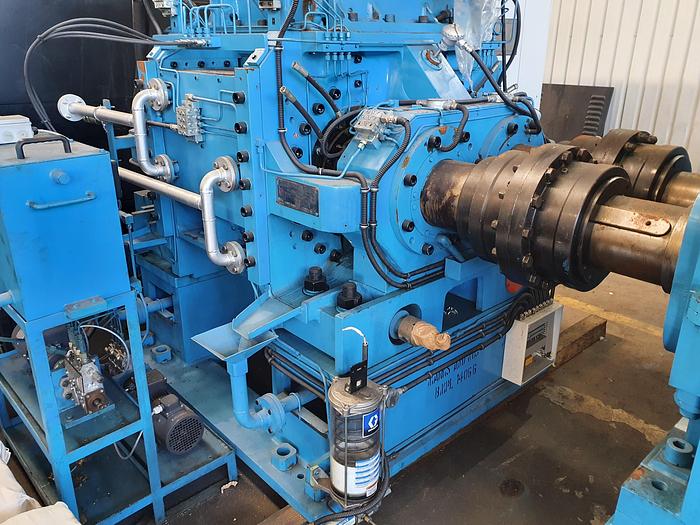

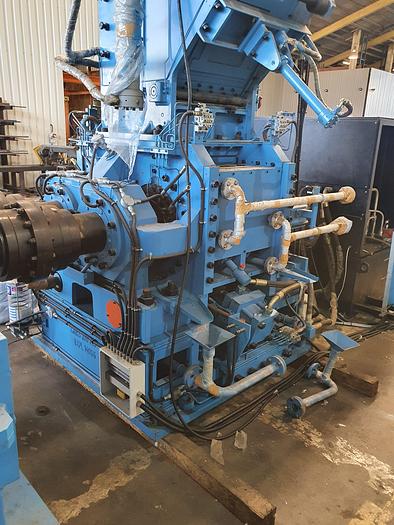

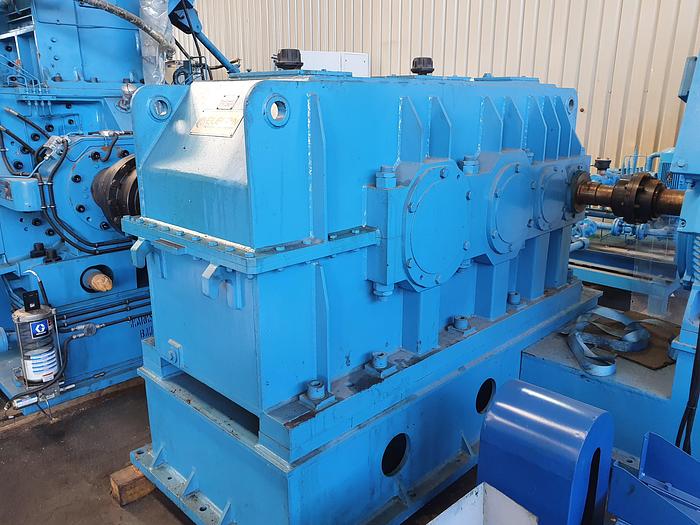

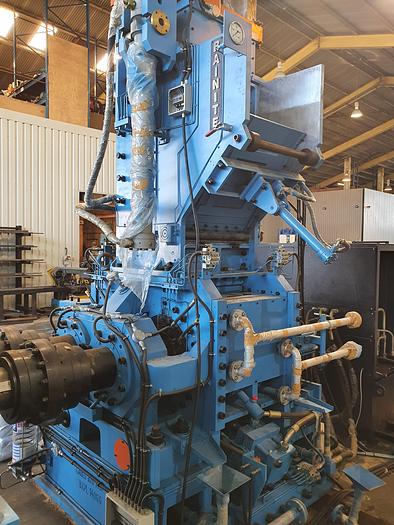

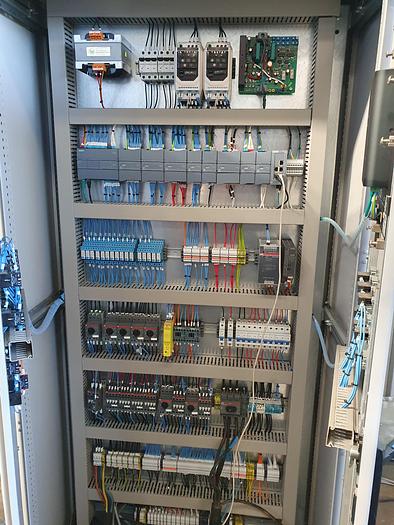

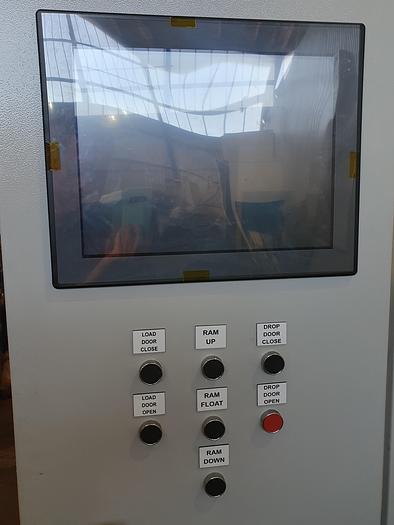

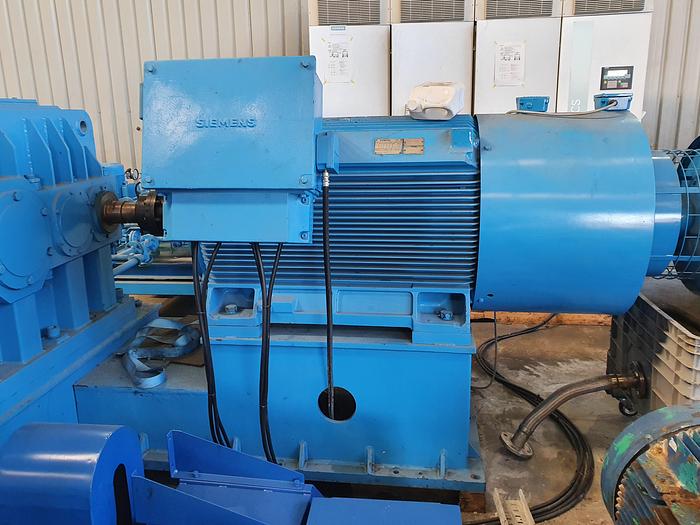

NEW Bainite (India) 95 litre intermeshing type mixer Model: BMIM95 Intermeshing mixer with hydraulic hopper Net chamber volume: 95 litre Batch weight approx 80kg (depending on SG and FF), Rotor speed: 6 – 60 rpm Rotor type: HP-5 design (intermeshing) Dust seals: SSA (self-sealing arrangement), Motor power: Siemens 420kW, 1000rpm AC squirrel cage motor with Siemens G150 VFD, Discharge door: Hydraulic drop door type with linear actuator and toggle latch mechanism, Feed Hopper Assembly: Hydraulically operated, Floating weight: single ‘V’ bottom type, Gearbox: Elecon Full unidrive type with S.F. 2.25. Bedplate: Fabricated steel Ancillaries: Dust stop lubrication (1.5HP x 2), hydraulic pump unit (20HP) Electrical Controls:  Siemens G150 variable frequency drive controls. Manual operator control panel included, with Siemens S7-1200 PLC and HMI. Warranty: 12 months from date of commissioning. Exclusions: ·       3 Zone TCU (optional) ·       Shipping/transport ·       Erection at site (although supervision can be provided if required) ·       Facilities for utility sources ·       Pipework up to machine ·       Wiring up to the machine ·       Hydraulic oil and lubrication oil ·       Dust extraction, ducting and hoods ·       Tools and equipment for installation and operation/maintenance ·       Supporting steel structures, mixer platform/stillage ·       Emergency power failure equipment All equipment and control panels are compliant to European Directives including: BS EN 60204-1 BS EN 62061-1 Low Voltage Directive EMC Directive Construction of Machinery Guards BS EN 953 The machine to be supplied with Technical file, documentation and Software included.

Specifications

ManufacturerBainite
ModelBMIM95
Year2020
ConditionNew
Stock Number123583097
