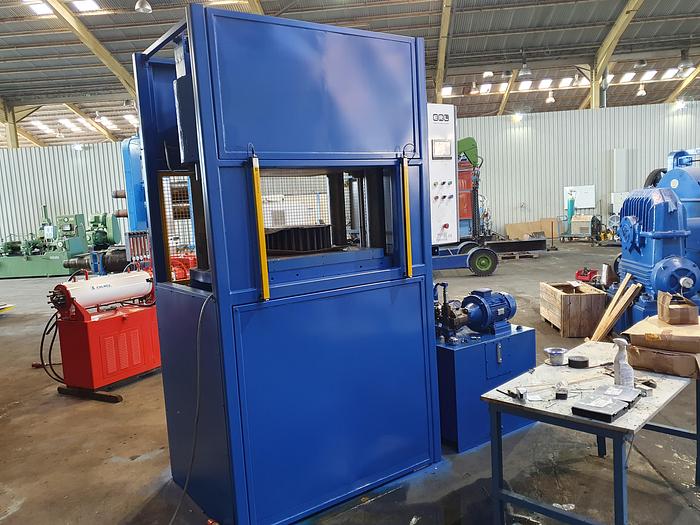

2020 Bradley & Turton 530ton Upstroke Hydraulic Press

2020 Bradley & Turton 530ton Upstroke Hydraulic Press

Contact us for price

Location:United Kingdom

orCall +441253850929

Description

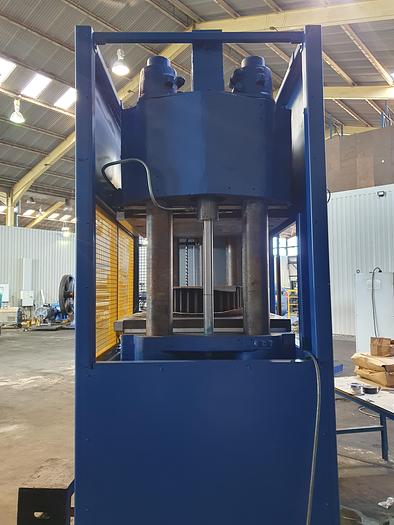

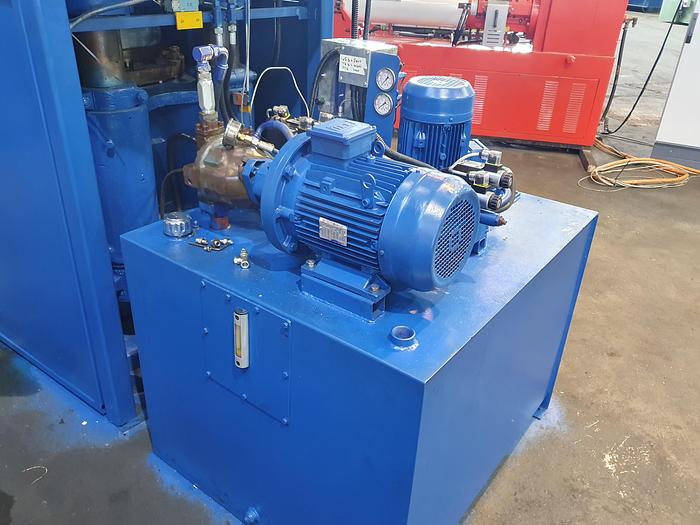

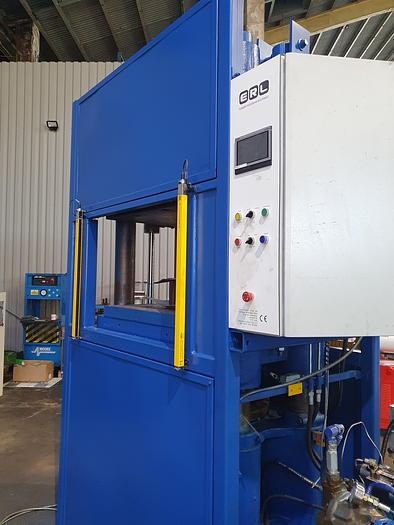

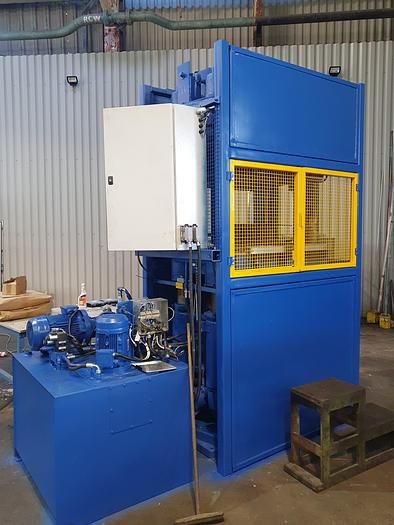

Bradley and Turton 530t upstroke hydraulic press,  4 column type,  bed size 950mm x 900mm,  ram dia 650mm,  stroke approx 700mm,  daylight (without platens) approx 750mm.  Refurbished hydraulic power pack with new valves, pump and motor etc. New main ram seal, New dual acting side rams Refurbished electrically heated platens 915mm sq. New insulation boards New light guards to front, with fixed guarding to sides and rear, in accordance with BS EN 289:2014. New PLC/HMI control panel for manual and automatic operation, including platen heating/cure time/breathe sequencing. HMI complete with Alarm functions/hours run/cycle counter. All press parameters to be set through HMI. Technical file and circuit diagrams provided. Warranty 3 months from date of installation.

Specifications

ManufacturerBradley & Turton
Model530ton Upstroke Hydraulic Press
Year2020
ConditionRefurbished
Stock Number123583099
