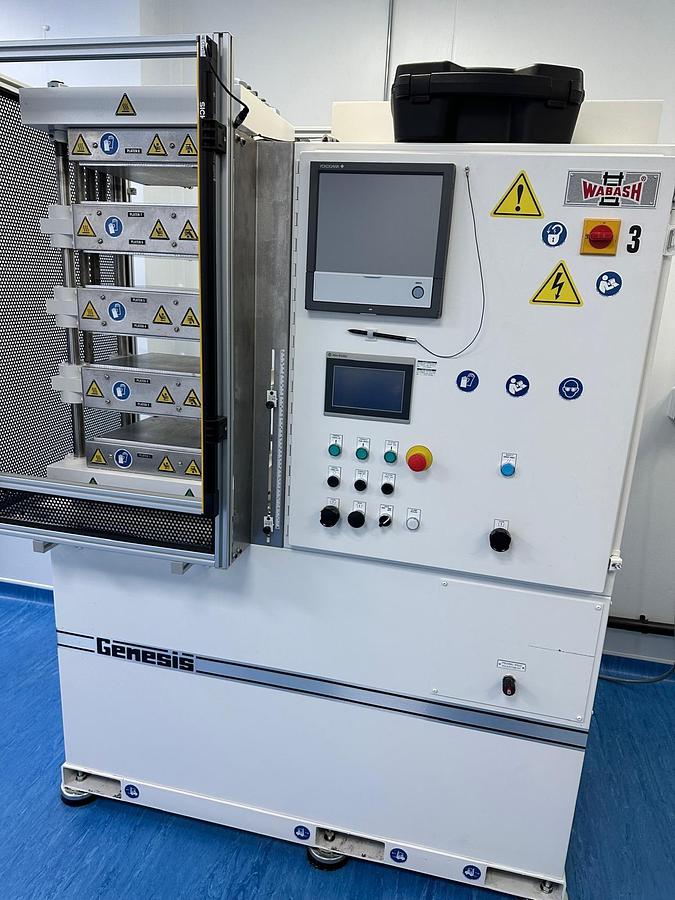

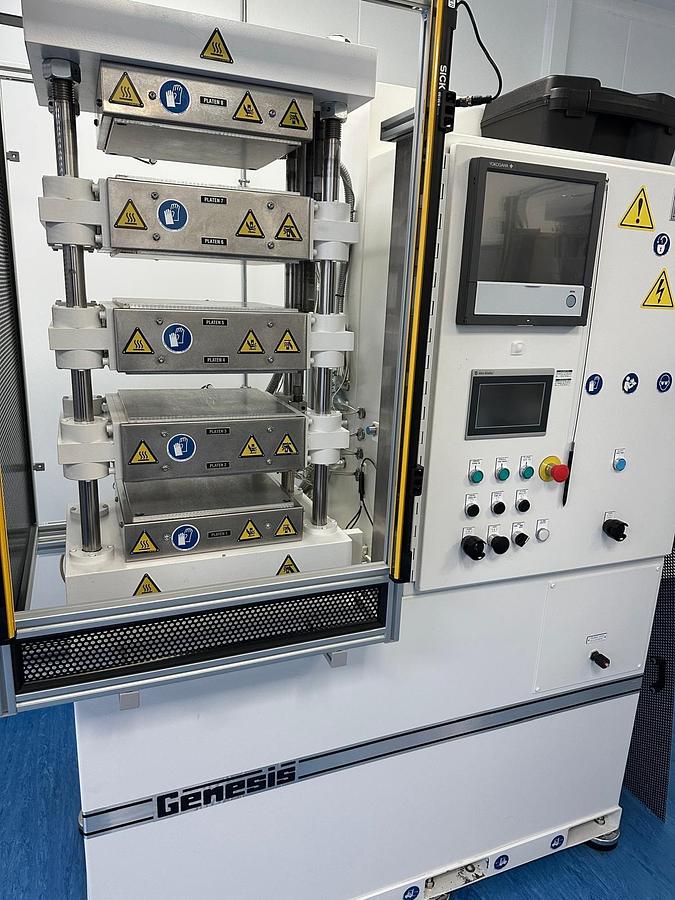

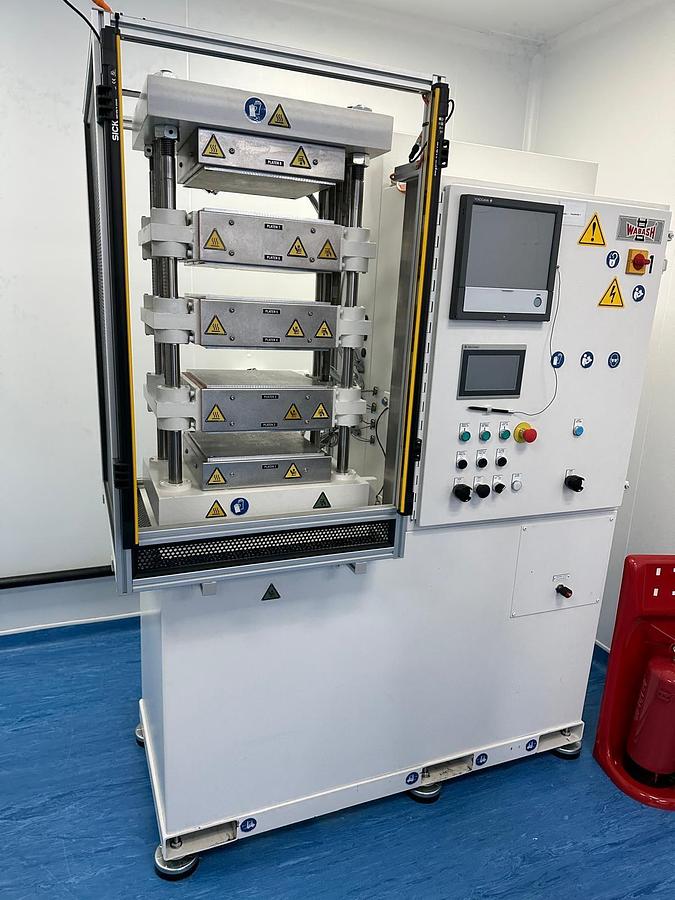

(X3) WABASH GENESIS Series Hydraulic Compression Press G304H-12-BLPX-CE

(X3) 30 ton Genesis series hydraulic compression press with four daylight openings.

2 - 30 ton compressio force (adjustable).

12'' L-R x 12'' F-B fully guided heated aluminium platens:

• 262 Deg C (500*F) maximum operating temp.
• Cartridge heaters.
• Full platen insulation, including perimeter.
• 1/12 DIN digital temp controllers.

Four openings with: (floater platen configuration 5 platens - 4 opening):

• 3'' each open daylight.
• 0" closed daylight.
• 5'' bore JIC style clamp cylinder.
• 12'' Stroke
• 42'' lower platen operating height (approx).

Self contained hydraulic system:

• 58 IPM Closing speed
• 0-4 IPM Pressing speed (adjustable)
• 62 IPM opening speed.

Control System NEMA-rated electrical control enclosure:

• Controller with 4'' panel view, 800 colour touch screen operator interface.
• Cycle counter through PLC
